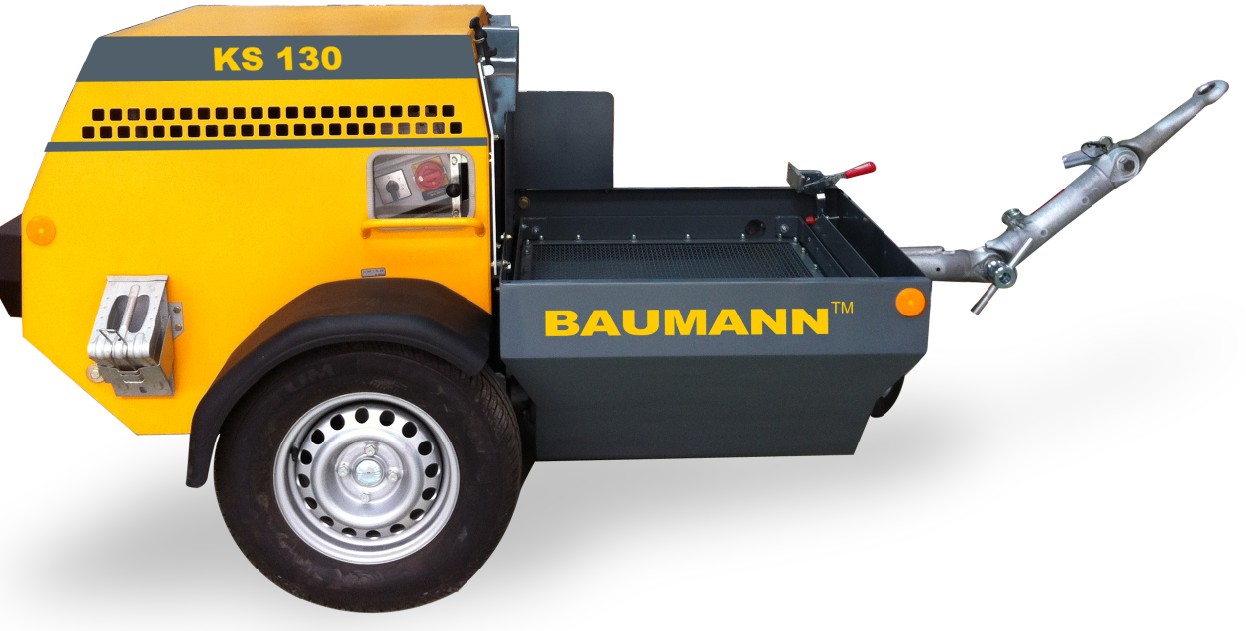

Baumann equipment new design and manufactured KS 130 series are one of the versatile, robust and powerful mortar machines on the market. This piston pump KS 130 series are purposely developed to deal with either on site mixing or prepackaged dry mixe mortars p to 10mm aggregate size. Baumann Equipment provides KS 130 machines optional with or without mixer, convenient our customers easy to choose right one for their job application.
| Special features: |
|
|
| –powerful 2 cylinder piston pump, 1 working pump and 1 balance piston |
| –robust and powerful electric motor |
|
| –integrated compressor |
|
|
| –pneumatic remote control |
|
|
| –vibrating screen ID10mm |
|
|
| Technical Data |
KS 130t |
KS 130 |
| Type |
with mixer |
without mixer |
| Pump |
mechanical piston pump KS 130 |
| Delivery rate |
30-90 l/min |
30-90 l/min |
| Delivery pressure |
40bar |
40bar |
| Piston stroke |
130mm |
130mm |
| Piston diameter |
100mm |
100mm |
| Delivery distance |
up to 300m horizontal,up to 100m vertical |
| Air compressor |
2-cylinder compressor,3.5bar, 300l/min |
| Drive motor |
electric motor 380V 7.5kW at 2,900 rpm |
| Volume hopper |
200l |
200l |
| Volume mixer |
170l |
— |
| Weight |
990kg |
880kg |
| Length |
3,000mm |
3,000mm |
| Width |
1,640mm |
1,640mm |
| Height |
1,450mm |
1,100mm |
| Filling height |
1,300mm |
1,300mm |
| Max.grain size |
10mm |
10mm |
| Pressure connection |
M50 |
M50 |
| Part no. |
B99 408 0010 |
B99 408 0020 | |
